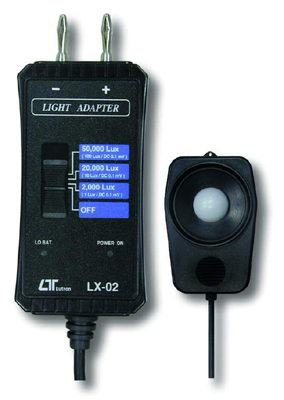

Lutron LX02
Light Adaptor
LIGHT ADAPTER
Model: LX‑02

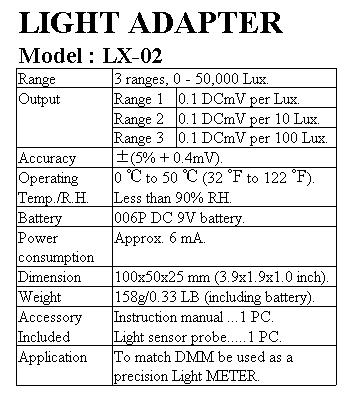

Specifications
| Range | 3 ranges, 0 – 50,000 Lux |
| Output | Range 1: 0.1 DC mV per Lux |
| Range 2: 0.1 DC mV per 10 Lux | |
| Range 3: 0.1 DC mV per 100 Lux | |
| Accuracy | ± (5% + 0.4 mV) |
| Operating Temperature / R.H. | 0°C to 50°C (32°F to 122°F), Less than 90% RH |
| Battery | 006P DC 9V battery |
| Power Consumption | Approx. 6 mA |
| Dimension | 100 × 50 × 25 mm (3.9 × 1.9 × 1.0 inch) |
| Weight | 158 g / 0.33 lb (including battery) |
| Accessories Included | Instruction manual — 1 PC. Light sensor probe — 1 PC. |
| Application | To match DMM to be used as a precision Light Meter. |
| Selling Unit | EACH |
|---|---|
| Model No | LX02 |
| Brand |
|
| Description | Light Adaptor |
| Categories |
Test & Measurement Equipment Digital Test Equipment Light Meters |
| Data Sheet |
|
