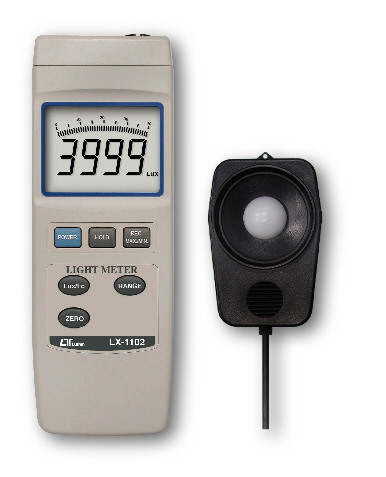

Lutron LX1102

Light Meter, Bar Graph LCD, 5 Ranges

Model: LX‑1102

5 ranges covering wide measurement up to 400,000 Lux.
Large LCD display with bar graph indicator.
High resolution: 0.01 Lux (low range), 0.01 Fc.
Sensor uses exclusive photo diode and color‑correction filter; spectrum meets C.I.E. photopic curve.
Sensor cosine‑correction factor meets standard.
Separate light sensor allows measurement at optimum position.
Lux & Foot‑candle (Fc) unit selection.
Water‑resistance front panel.
Rotary switch for function select.
Zero adjusting button.
Data hold to freeze the displayed reading.
Peak hold measurement.
Memory function stores maximum & minimum values with recall.
Auto power off or manual power off.
Compact size and excellent operation.
Built‑in low battery indicator.
RS‑232 computer serial data output.

Display	Large LCD display (52 × 32 mm), 5 digits with bar‑graph indicator.
Measurement Range	5 ranges: 40 / 400 / 4,000 / 40,000 / 400,000 Lux
Units	Lux, Foot‑candle (Fc)
Sensor	Exclusive photo diode & color‑correction filter. Spectrum meets C.I.E. photopic curve. Meets cosine‑correction requirement.
Zero Adjustment	External adjustment by push button.
Peak Hold	Hold the peak display.
Data Hold	Freeze the display value.
Memory	Save maximum & minimum reading with recall.
Over / Under Range Indicator	Over‑range and under‑range indicators.
Power Off	Auto or manual power off.
Data Output	RS‑232 serial data output.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Max. 80% RH.
Power Supply	DC 9V battery (006P, MN1604 / PP3) or equivalent.
Power Consumption	Approx. DC 8 mA.
Weight	220 g (0.49 lb).
Dimension	Main instrument: 200 × 68 × 30 mm (7.9 × 2.7 × 1.2 inch). Sensor probe: 82 × 55 × 17 mm (3.2 × 2.2 × 0.7 inch).
Accessories Included	Instruction manual — 1 PC. Light sensor with protection cover — 1 PC.
Optional Accessories	RS‑232 cable, UPCB‑02. Application software, SW‑U801‑WIN. Hard carrying case, CA‑06. Soft carrying case, CA‑05A.

Range	Display	Resolution	Accuracy
40 Lux	0 – 40.00 Lux	0.01 Lux	± (3% rdg + 0.5% F.S.)
400 Lux	0 – 400.0 Lux	0.1 Lux
4,000 Lux	360 – 4,000 Lux	1 Lux
40,000 Lux	3,600 – 40,000 Lux	10 Lux
400,000 Lux	10,000 – 400,000 Lux	100 Lux

Range	Display	Resolution	Accuracy
4 Fc	0 – 3.72 Fc	0.001 Fc	± (3% rdg + 0.5% F.S.)
40 Fc	3.35 – 37.20 Fc	0.01 Fc	± (3% rdg + 0.5% F.S.)
400 Fc	33.5 – 372.0 Fc	0.1 Fc	± (3% rdg + 0.5% F.S.)
4,000 Fc	335 – 3,720 Fc	1 Fc	Reference only (> 9,300 Fc)

Selling Unit	EACH
Model No	LX1102
Brand
Description	Light Meter, Bar Graph LCD, 5 Ranges
Width	55mm
Height	7mm
Length / Breadth / Depth	82mm
Weight	93.3g
Categories	Test & Measurement Equipment Digital Test Equipment Light Meters
