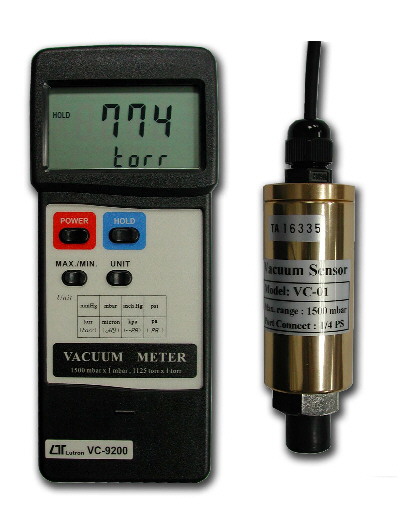

Lutron VC9200
Vacuum Meter
VACUUM METER
Model: VC‑9200
Features
- Absolute vacuum & absolute pressure measurement.
- Auto shut off saves battery life.
- Wide pressure range from 1 to 1500 mbar.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Overload protection up to 2000 mbar max.
- Records maximum & minimum readings with recall.
- Separate probe, easy operation.
- Application: Automobile, industrial, laboratory, heating, ventilation, medical hospital.
- Data hold function for stored the desired value on display.
- Heavy duty sensor used for air, oil, gas, liquid.
- Built‑in low battery indicator.
- 8 kinds display units (torr, mmHg, micron, mbar, kPa, Pa, inch Hg, psi) selectable by push button on the front panel.
- RS232 PC serial interface, can match the personal computer used as the data logger, recorder.
General Specifications
| Display | 61 mm × 34 mm super large LCD display, 15 mm (0.6") digit size. |
| Display Units | 8 kinds: mbar, kPa, Pa, torr, mmHg, micron, inch Hg, psi. |
| Circuit | Microprocessor LSI circuit. |
| Function | Data hold, memory (max., min.). |
| Sensor Probe | Separate probe, easy operation. |
| Data Hold | By push button. |
| Data Record | Record maximum & minimum reading. |
| Data Output | RS232 PC serial interface. |
| Sampling Time | Approx. 0.8 second. |
| Power Off | Auto shut off, saves battery life, or manual off by push button. |
| Operating Temperature | 0 to 50°C (32 to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Power Supply | 006P DC 9V battery (heavy duty type). |
| Power Current | Approx. DC 6.0 mA. |
| Weight | Instrument: 220 g / 0.48 lb. Sensor probe: 175 g / 0.39 lb. |
| Dimension | Meter: 180 × 72 × 32 mm (7.1 × 2.8 × 1.3 inch) Sensor probe: 55 mm × 30 mm Dia. |
| Accessories Included | Sensor probe — 1 PC. Instruction manual — 1 PC. Hard carrying case — 1 PC. |
| Optional Accessories | Data acquisition software (Windows version) RS232 cable, UPCB‑01 |
Electrical Specifications (23 ± 5°C)
| Unit | Max. Range | Resolution | Accuracy |
|---|---|---|---|
| mbar | 1500 mbar | 1 mbar | ± 1% F.S. (F.S.: full scale) Note: Included linearity, hysteresis and repeatability. |
| kPa | 150.0 kPa | 0.1 kPa | |
| Pa | 150,000 Pa | 100 Pa | |
| torr | 1125 torr | 1 torr | |
| mmHg | 1125 mmHg | 1 mmHg | |
| micron | 1,125,000 micron | 100 micron | |
| inch Hg | 44.30 inch Hg | 0.02 inch Hg | |
| psi | 21.75 psi | 0.01 psi |
| Selling Unit | EACH |
|---|---|
| Model No | VC9200 |
| Brand |
|
| Description | Vacuum Meter |
| Categories |
Test & Measurement Equipment Digital Test Equipment Pressure & Vacuum Meters |
