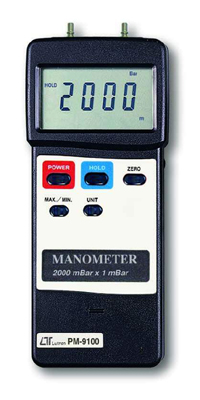

Lutron PM9100

Manometer - Differential Pressure Input

Dual & differential input
Model: PM‑9100

Dual & differential input, 2000 mbar max. range.
Push button gain adjustment, usage for calibration precision if necessary.
Applications: industrial, laboratory, heating, ventilation, medical hospital, used for air or not corrosive and not ionized gas & liquid.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Sensor is built inside the housing.
Super large LCD display with contrast adjustment for best viewing angle.
Single hose for pipe connection.
Records maximum & minimum readings with recall.
8 kinds display units (mbar, psi, kg/cm², mmHg, inchHg, meterH2O, inchH2O, Atmosphere) selectable by push button on the front panel.
Data hold function for stored the desired value on display.
Auto shut off saves battery life.
Built‑in low battery indicator.
RS232 PC serial interface, can match the personal computer used as the Data Logger, Recorder, and other modern measurement system.

Circuit	Microprocessor LSI circuit.
Display	61 mm × 34 mm super large LCD display, 15 mm (0.6") digit size.
Display Units	mbar, psi, kg/cm², mmHg, inchHg, meterH2O, inchH2O, Atmosphere.
Function	Dual & differential input, data hold, memory.
Zero Adjust	Push button on the front panel.
Span Adjust	Push button gain adjustment, usage for calibration precision if necessary.
Sensor	Sensor is built inside the housing. Piezoresistive sensor, used for air or not corrosive and not ionized gas & liquid.
Data Hold	By push button.
Data Record	Record maximum & minimum readings.
Data Output	RS232 PC serial interface.
Sampling Time	Approx. 0.8 second.
Power Off	Auto shut off saves battery life, or manual off by push button.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Power Supply	006P DC 9V battery (heavy duty type).
Power Current	Approx. DC 8.5 mA.
Weight	345 g / 0.76 lb.
Dimension	180 × 72 × 32 mm (7.1 × 2.8 × 1.3 inch).
Accessories Included	Instruction manual — 1 PC. Hard carrying case — 1 PC.
Optional Accessories	Data acquisition software (Windows version) RS232 cable, UPCB‑01

Unit	Full Range	Resolution	Accuracy
mbar	2000 mbar	1 mbar	± 2% F.S. (F.S.: full scale) Note: Included linearity, hysteresis and repeatability.
psi	29 psi	0.01 psi
kg/cm²	2.040 kg/cm²	0.001 kg/cm²
mmHg	1500 mmHg	1 mmHg
inchHg	59.05 inchHg	0.02 inchHg
meterH2O	20.40 meterH2O	0.01 meterH2O
inchH2O	802 inchH2O	0.5 inchH2O
Atmosphere	1.974 Atmosphere	0.001 Atmosphere
