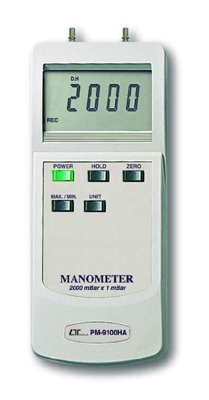

Lutron PM9100HA

Manometer - 200 Mbar Differential Pressure Input

Model: PM‑9100HA

Dual & differential input, 2000 mbar max. range.
Zero button on the front panel, easy to offset the zero value.
Applications: industrial, laboratory, heating, ventilation, medical hospital, used for air or non‑corrosive and non‑ionized gas & liquid.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Sensor is built inside the housing.
Super large LCD display with contrast adjustment for best viewing angle.
Single hose for pipe connection.
Records maximum & minimum readings with recall.
8 kinds display units (mbar, psi, kg/cm², mmHg, inchHg, meterH2O, inchH2O, Atmosphere) selectable by push button on the front panel.
Data hold function for stored the desired value on display.
Auto shut off saves battery life.
Built‑in low battery indicator.

Circuit	Microprocessor LSI circuit.
Display	61 mm × 34 mm super large LCD display, 15 mm (0.6") digit size.
Display Units	mbar, psi, kg/cm², mmHg, inchHg, meterH2O, inchH2O, Atmosphere.
Function	Dual & differential input, data hold, memory.
Zero Adjust	Push button on the front panel.
Sensor	Sensor is built inside the housing. Piezoresistive sensor, used for air or not corrosive and not ionized gas & liquid.
Data Hold	By push button.
Data Record	Record maximum & minimum readings.
Sampling Time	Approx. 0.8 second.
Power Off	Auto shut off saves battery life, or manual off by push button.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Power Supply	006P DC 9V battery (heavy duty type).
Power Current	Approx. DC 6.0 mA.
Weight	345 g / 0.76 lb.
Dimension	185 × 78 × 38 mm (7.2 × 3.0 × 1.4 inch).
Accessories Included	Instruction manual — 1 PC. Hard carrying case — 1 PC.

Unit	Max. Range	Resolution	Accuracy
mbar	2000 mbar	1 mbar	± 2% F.S. (F.S.: full scale) Note: Included linearity, hysteresis and repeatability.
psi	29 psi	0.02 psi
kg/cm²	2.040 kg/cm²	0.001 kg/cm²
mmHg	1500 mmHg	1 mmHg
inchHg	59.05 inchHg	0.05 inchHg
meterH2O	20.40 meterH2O	0.01 meterHg
inchH2O	802 inchH2O	0.5 inchHg
Atmosphere	1.974 Atmosphere	0.001 Atmosphere

Selling Unit	EACH
Model No	PM9100HA
Brand
Description	Manometer - 200 Mbar Differential Pressure Input
Weight	345g
Categories	Test & Measurement Equipment Digital Test Equipment Pressure & Vacuum Meters
