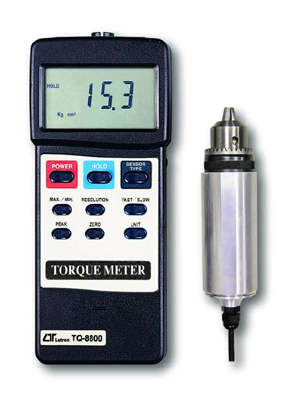

Lutron TQ8800
Torque Meter + RS232
TORQUE METER, 15 Kg‑cm
Model : TQ‑8800
FEATURES
- Professional torque meter with 15 Kg‑cm torque probe.
- 3 kind display unit select : Kg‑cm, LB‑inch and Newton‑cm on the front panel.
- Peak value measurement.
- Data hold button to freeze the desired reading.
- Peak hold measurement to hold the peak value.
- High/Low resolution select by push button.
- Fast/Slow sampling select by push button.
- Records Maximum and Minimum readings with recall.
- RS232 computer interface.
- Super large LCD display, easy read‑out.
- Microcomputer circuit, high performance.
- Separate torque probe, easy operation.
- Meter can accept 3 kinds torque probes ( 15, 50, 100 Kg‑cm ). Change probe, new calibration are not necessary.
- Auto shut off saves battery life.
- Built‑in low battery indicator.
- Heavy duty & compact housing case.
- Complete set with the hard carrying case.
GENERAL SPECIFICATIONS
| Display | 61 mm x 34 mm super large LCD display. 15 mm (0.6") digit size. |
Operating temperature | 0 ℃ to 50 ℃ (32 ℉ to 122 ℉). |
| Measurement | Torque value, Peak hold, Data hold, Max. & Min. value. |
Operating humidity | Less than 80% RH. |
| Display unit | Kg‑cm / LB‑inch / Newton‑cm. | Power supply | Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent. |
| Sensor | Exclusive torque sensor. | Power consumption | Approx. DC 20 mA. |
| Circuit | Exclusive microcomputer circuit. | Weight | Meter : 230 g (0.50 LB) Probe : 600 g (1.32 LB) |
| Data hold | Freeze the desired reading. | Dimension | Meter : 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch) Torque probe : Round 48 mm Dia. x 160 mm. |
| Peak hold | To hold the peak value. | ||
| Memory | Maximum & Minimum value. | Accessories included | Instruction manual ............. 1 PC. 15 Kg‑cm torque probe .......... 1 PC. Carrying Case .................. 1 PC. |
| Power off | Auto shut off saves battery life, or manual off by push button. | Optional accessories | * Software (Windows version), data record & data acquisition : SW‑U101‑WIN * RS232 cable : UPCB‑01 |
| Sampling time | Fast / Slow select. |
DISPLAY UNIT / RESOLUTION
| Unit | Max. range | High resolution | Low resolution |
|---|---|---|---|
| Kg‑cm | 15 Kg‑cm | 0.01 Kg‑cm | 0.1 Kg‑cm |
| LB‑inch | 12.99 LB‑inch | 0.01 LB‑inch | 0.1 LB‑inch |
| Newton‑cm | 147.4 Newton‑cm | 0.1 Newton‑cm | 1 Newton‑cm |
| Selling Unit | EACH |
|---|---|
| Model No | TQ8800 |
| Brand |
|
| Description | Torque Meter + RS232 |
| Categories |
Test & Measurement Equipment Digital Test Equipment Analytical Meters |
| Data Sheet |
|
