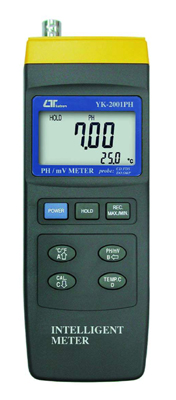

Lutron YK2001PH

pH Meter

Model : YK‑2001PH

Master meter is a professional pH / mV meter with pH & mV measuring functions.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Optional expandable probes satisfy your different measurement demands on Conductivity (TDS/Salinity), Dissolved Oxygen, ORP, and relative humidity.
pH/ORP measurement with high input impedance avoids measuring errors.
Wide automatic & manual temperature compensation range.
The values of “Manual temp. compensation” are reading from the LCD display directly, no error & easy operation.
Dual function meter’s display.
Records Maximum and Minimum readings.
Data Hold, ℃ / ℉.
Auto shut off saves battery life. Built‑in low battery indicator.
RS‑232 PC computer interface.
Wide applications : water conditioning, aquariums, beverage, food processing, photography, laboratory, schools & colleges.
Patent Pending in Taiwan, Germany, China, Patent Pending in USA.

Circuit	Custom one‑chip of microprocessor LSI circuit.	Data Record	Records Max. Min. reading values on the display.
Display	Dual function meter’s display, 13 mm (0.5") Super large LCD display.	Data Output	RS232 PC serial interface.
Measurement	pH mV	Over load Indication	Indication of “‑‑‑‑”.
Input Impedance	10¹² ohms.	pH Electrode	Any pH electrode with BNC connector.
Temperature Compensation	Manual : 0 to 100 ℃, adjusting by push button on front panel. Automatic : with the optional Temp. probe (YK‑200ATC), 0 to 65 ℃.	Operating Temperature	0 to 50 ℃ (32 to 122 ℉).
Power off	Auto shut off saves battery life, or manual off by push button.	Operating Humidity	Less than 80% RH.
Sampling Time	Approx. 0.8 second.	Power Supply	DC 9V, 006P, MN1604 (PP3), battery or equivalent.
Weight	250 g / 0.55 LB.	Size	185 x 72 x 32 mm (7.3 x 2.8 x 1.3 inch).
Standard Accessories	Instruction manual ............... 1 PC.
Intelligent functions and Optional Accessories	1. The instrument can plug in the optional Conductivity/TDS probe (YK‑200CD), Conductivity/TDS probe (YK‑200CDP), Dissolved Oxygen probe (YK‑200DO), Dissolved Oxygen meter sensor (YK‑200DOS), ORP probe (ORP‑04, optional) to become a professional DO meter or ORP meter, any these probes are required to be done. 2. The instrument has mV (millivolt) function to work ORP probe (ORP‑04, optional) to be a professional ORP meter or any other precise mV measurement.

Measurement	Range	Resolution	Accuracy
pH	0 to 14 pH	0.01 pH	± (0.02 pH + 2 d)
mV	± 1999 mV	1 mV	± (0.5% + 2 d)

* Appearance and specifications listed in this brochure are subject to change without notice.

Selling Unit	EACH
Model No	YK2001PH
Brand
Description	pH Meter
Width	68mm
Height	30mm
Length / Breadth / Depth	195mm
Weight	89.2g
Categories	Test & Measurement Equipment Digital Test Equipment Analytical Meters
