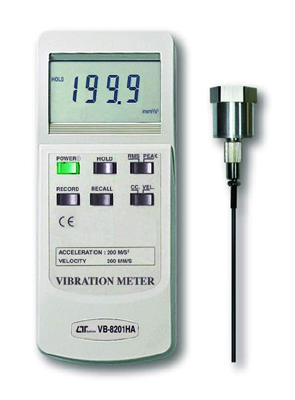

Lutron VB8201HA
Vibration Meter with sensor
VIBRATION METER
Model: VB‑8201HA
Features
- Applications for industrial vibration monitoring. All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that maintenance is needed.
- Frequency range 10 Hz ~ 1 KHz, sensitivity relative meet ISO 2954.
- Professional vibration meter supply with vibration sensor & magnetic base, full set.
- Velocity measuring range 200 mm/s.
- Acceleration measuring range 200 m/s².
- RMS & Peak measurement.
- Wide frequency range.
- Data hold button to freeze the desired reading.
- Memory function to record maximum and minimum reading with recall.
- Separate vibration probe, easy operation.
- RS‑232 computer interface.
- Optional data acquisition software for data record & dialogue.
- Super large LCD display.
- Microcomputer circuit, high performance.
- Auto shut off saves battery life.
- Built‑in low battery indicator.
- Heavy duty & compact housing case.
- Complete set with the hard carrying case.
Specifications
| Display | 61 mm x 34 mm super large LCD display. 15 mm (0.6") digit size. |
Memory | Maximum & Minimum value. |
| Measurement | Velocity, Acceleration RMS value, Peak value, Data hold, Max. & Min. value. |
Sampling time | Approx. 1 second. |
| Range | Velocity: 0.5 to 199.9 mm/s Acceleration: 0.5 to 199.9 m/s² |
Operating Temperature | 0 to 50°C (32 to 122°F). |
| Frequency Range | 10 Hz to 1 KHz. * Sensitivity relative during the frequency range meet ISO 2954. |
Operating Humidity | Less than 80% RH. |
| Accuracy | ± (5% + 2 d) reading @ 80 Hz, 160 Hz. @ 23 ± 5°C. |
Power Supply | Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 (PP3) or equivalent. |
| Calibration Point | Velocity: 50 mm/s (160 Hz) Acceleration: 50 m/s² (160 Hz) |
Power Consumption | Approx. DC 6 mA. |
| Circuit | Exclusive microcomputer circuit. | Weight | Meter: 274 g / 0.60 LB Probe with magnetic base: 380 g / 0.08 LB |
| Data Hold | Freeze the desired reading. | Dimension | Meter: 185 x 78 x 35 mm (7.3 x 3.1 x 1.5 inch). Vibration sensor probe: Round 16 mm Dia. x 29 mm. |
| Peak Measurement | To measure the peak value. | Accessories Included | Instruction manual ............ 1 PC. Vibration sensor (VB‑81A) ............ 1 PC. Cable ................................. 1 PC. Magnetic base ...................... 1 PC. Carrying Case ...................... 1 PC. |
| Power off | Auto shut off, saves battery life, or manual off by push button. |
* Appearance and specifications listed in this brochure are subject to change without notice.
| Selling Unit | EACH |
|---|---|
| Model No | VB8201HA |
| Brand |
|
| Description | Vibration Meter with sensor |
| Width | 78mm |
| Height | 38mm |
| Length / Breadth / Depth | 185mm |
| Weight | 99.6g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Electronic Test Meters |
