![Noark N852902-2P-MCCB 250A/500VDC](/image/66828/1/Noark-N852902-2P-MCCB 250A/500VDC.jpg)
Noark N852902-2P-MCCB 250A/500VDC
N852902 MCCB EX9MD2B 250A 500V 2 Pole DC Circuit Breaker
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..
Specifications
Noark Series | EX9MD2B TM DC250 2P |
---|---|
Poles | 2 (250VDC per pole) |
Current Rating (A) | 250A |
Voltage (Max.) | 500VDC |
Rated Insulation Voltage (VDC) Ui | 1000VDC |
Rated Breaking Capacity | 25kA |
Release Technology | Thermo Magnetic |
Frame Size | 2 |
Frame Rating | 250A |
IP Rating (All sides/terminals) | IP40 / 20 |
Standards | IEC/EN/AS60947-2 |
Noark MCCB's are adjustable:
![Noark Adjustment Icon](/images/batteries/mccb_adj_icon.png)
This product can be adjusted down to lower currents via the pot switch
Click here to see the Noark MCCB range with all adjustment ratings, or Click here to view the Noark MCCB Product Brochure
SHARE:
Selling Unit | EACH |
---|---|
Model No | N852902-2P-MCCB 250A/500VDC |
Brand |
![]() |
Description | N852902 MCCB EX9MD2B 250A 500V 2 Pole DC Circuit Breaker |
Application | Battery Banks, Solar, Automation, Control, Telecommunications, DC circuit applications |
Voltage | 500V |
Size | 250A |
Width | 70mm |
Height | 157mm |
Length / Breadth / Depth | 96.5mm |
Weight | 1200g |
Categories |
DC Circuit Breakers Moulded Case Circuit Breakers Noark Moulded Case Circuit Breakers |

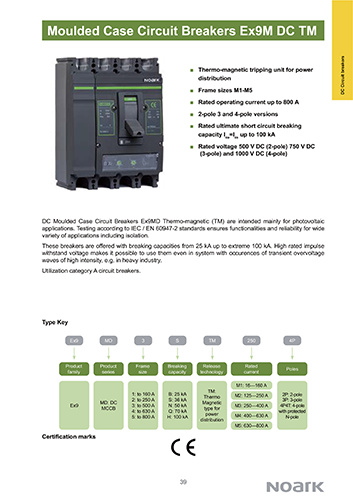

Data Sheet |
![]() |
