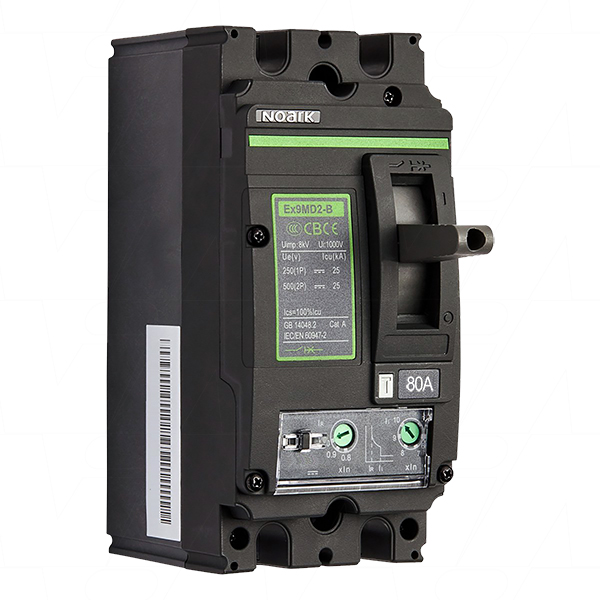

![Noark N852894-2P-MCCB 80A/500VDC](/image/67159/1/Noark-N852894-2P-MCCB 80A/500VDC.jpg)
Noark N852894-2P-MCCB 80A/500VDC
N852894 MCCB EX9MD1B 80A 500V 2 Pole DC Circuit Breaker
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases.
Specifications
Noark Series | EX9MD1B TM DC80 2P |
---|---|
Poles | 2 (250VDC per pole) |
Current Rating (A) | 80A |
Voltage (Max.) | 500VDC |
Rated Insulation Voltage (VDC) Ui | 1000VDC |
Rated Breaking Capacity | 25kA |
Release Technology | Thermo Magnetic |
Frame Size | 1 |
Frame Rating | 250A |
IP Rating (All sides/terminals) | IP40 / 20 |
Standards | IEC/EN/AS60947-2 |
Noark MCCB's are adjustable:
![Noark Adjustment Icon](/images/batteries/mccb_adj_icon.png)
If the above product is out of stock, you can use the 100A rated N852895 model with the pot switch adjusted to 0.8 to still achieve the 80A rating.
Click here to see the Noark MCCB range with all adjustment ratings, or Click here to view the Noark MCCB Product Brochure
Selling Unit | EACH |
---|---|
Model No | N852894-2P-MCCB 80A/500VDC |
Brand |
![]() |
Description | N852894 MCCB EX9MD1B 80A 500V 2 Pole DC Circuit Breaker |
Application | Solar, Automation, Control, Telecommunications, DC circuit applications |
Voltage | 500V |
Size | 80A |
Width | 62mm |
Height | 140mm |
Length / Breadth / Depth | 81.6mm |
Categories |
DC Circuit Breakers Moulded Case Circuit Breakers Noark Moulded Case Circuit Breakers |

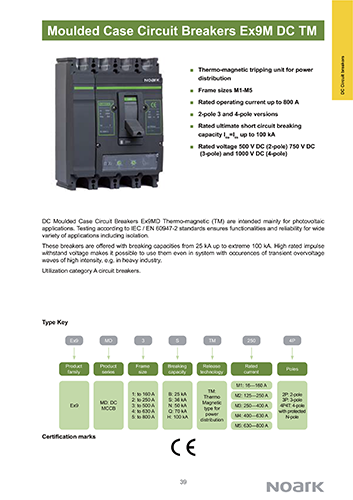

Data Sheet |
![]() |
