![Noark N852792-3P-MCCB 700A/750VDC](/image/67163/1/Noark-N852792-3P-MCCB 700A/750VDC.jpg)

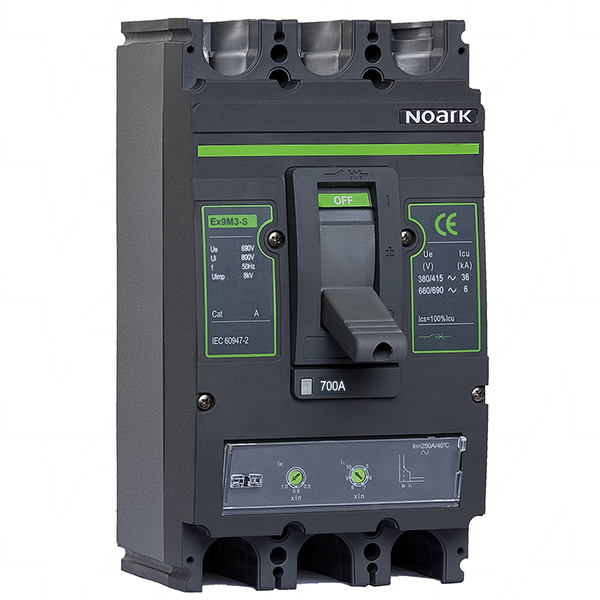

Noark N852792-3P-MCCB 700A/750VDC
N852792 MCCB EX9MD5B 700A 750V 3 Pole DC Circuit Breaker
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases.
Specifications
Noark Series | EX9MD5B TM DC700 3P |
---|---|
Poles | 3 (250VDC per pole) |
Current Rating (A) | 700A |
Voltage (Max.) | 750VDC |
Rated Insulation Voltage (VDC) Ui | 1000VDC |
Rated Breaking Capacity | 25kA |
Release Technology | Thermo Magnetic |
Frame Size | 5 |
Frame Rating | 630A |
IP Rating (All sides/terminals) | IP40 / 20 |
Standards | IEC/EN/AS60947-2 |
Noark MCCB's are adjustable:
![Noark Adjustment Icon](/images/batteries/mccb_adj_icon.png)
If the above product is out of stock, you can use the 800A rated N852793 model with the pot switch adjusted to 0.9 to still achieve a 720A rating.
Click here to see the Noark MCCB range with all adjustment ratings, or Click here to view the Noark MCCB Product Brochure
Selling Unit | EACH |
---|---|
Model No | N852792-3P-MCCB 700A/750VDC |
Brand |
![]() |
Description | N852792 MCCB EX9MD5B 700A 750V 3 Pole DC Circuit Breaker |
Application | Battery Banks, Solar, Automation, Control, Telecommunications, DC circuit applications |
Voltage | 750V |
Size | 700A |
Width | 195mm |
Height | 300mm |
Length / Breadth / Depth | 133.5mm |
Weight | 10200g |
Categories |
DC Circuit Breakers Moulded Case Circuit Breakers Noark Moulded Case Circuit Breakers |

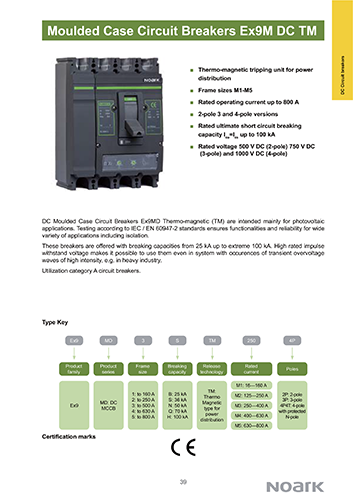

Data Sheet |
![]() |
