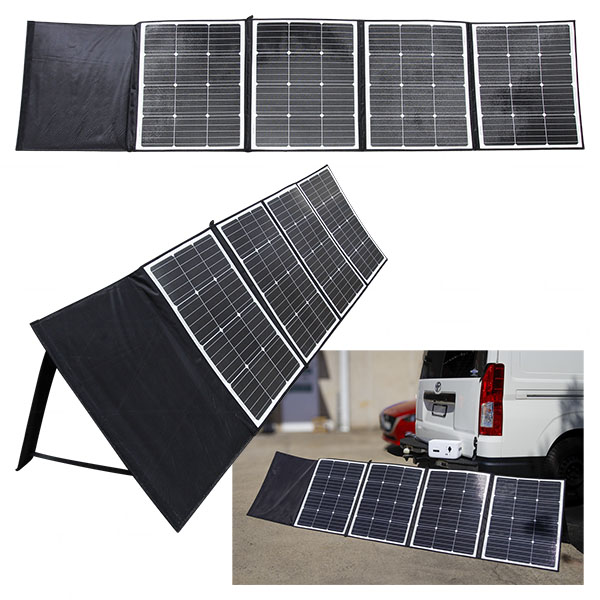

Sunman SMF235M-12

Designed by Sunman, using their lightweight robust eArc monocrystalline solar panels, this premium 235w portable solar panel is made with a Patented composite material similar to those used in airplane windows. As this material is much more durable than standard ETFE and PET panels, a thick fibreglass sheet behind the panel is not necessary and the weight can be kept to a minimum.

eArc solar panels are are about 75 percent lighter than conventional photovoltaic panels.

• Easy to carry - lightweight (6kg) with built-in handle ​
• Easy to use - fold out only two panels.  Loops for easy hanging or lay flat
• Easy to store - thin profile (comes with bubble wrap bag in cardboard box for storage)
• Easy fold-out legs

Features & Benefits:

• Lightweight and compact:
  Made with 48 solar cells in four sections of 12 solar cells each fold into a compact carry bag with handle that is easy to carry and store and weighs only 7kg!
  • Dimensions folded  - 670 x 540 x 24 mm
  • Dimensions un-folded  - 670 x 2600 x 5 mm
• The functional storage pouch keeps the cables and a PWM solar charge controller neatly protected and stored when not in use.
• High Efficiency: The output warranty is the same as high grade rigid solar panels used on Mobile applicationss: above 80% of the original power by the 5th year.
• Durable: The top encapsulation layer is a high-strength fluorine polymer that is corrosion and stain resistant, non-stick self cleaning, and retains its clarity (and therefore light transmittance) ensuring long service life for solar panels.  It will not discolour or degrade from exposure to environmental pollution, UV light, harsh chemicals or extreme temperature variations.
  The surface is textured for extra robustness.
• Included Accessories:
  • PWM charge controller with LCD display (lithium compatible)
  • 5m twin core 4mm² PV1-F extension cable with Anderson Plugs.
  • Alligator clips for easy battery connection

 5 year warranty on the Panel, 1 year warranty on the accessories. For more information, see the Sunman Warranty Documents page.



Specifications:

Rated Power - Pmax (watts)	235W
Max. Power Voltage VMP (V)	26.1V
Max. Power Current IMP (A)	9.01A
Open Circuit Voltage Voc (V)	31.7V
Short Circuit Current Isc (A)	9.54A
Max. System Voltage	600VDC (IEC)
Operating Temperature	-40°C to +85°C
No of Cells	48 (4 x 12)
Connectors / Output Cable	PV1-F, 4mm2 (tinned copper) Panel to controller - MC4 Controller to 5m lead - Anderson 5m lead to alligator clips - Anderson
