Enepower MIBMS-10S15A-LNMC-01
Protection Circuit Module (PCM) programmed for 36/37V LiIon Battery Packs - 15A Max Discharge
This protection circuit module has been programmed for 36/37V (10S) LiIon battery packs and settings are as per the datasheet.
The voltage, current and temperature protection parameters can be re-programmed to suit specific requirements upon request.
Please note: This series of BMS’s have programmable options from 3S to 16S assembly configurations.
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | MIBMS-10S15A-LNMC-01 |
| Brand |
|
| Description | Protection Circuit Module (PCM) programmed for 36/37V LiIon Battery Packs - 15A Max Discharge |
| Application | Overcurrent & Overcharge/Overdischarge & Explosion Protection |
| Chemistry | Lithium Ion (LiIon) |
| Maximum Continuous Discharge Current | 15A |
| Size | 10S |
| Width | 54mm |
| Height | 9.5mm |
| Length / Breadth / Depth | 72mm |
| Weight | 20g |
| Categories |
Portable Power Product Battery Parts & Tools Battery Pack Protection & Management LiIon-LiPo PCM-BMS |

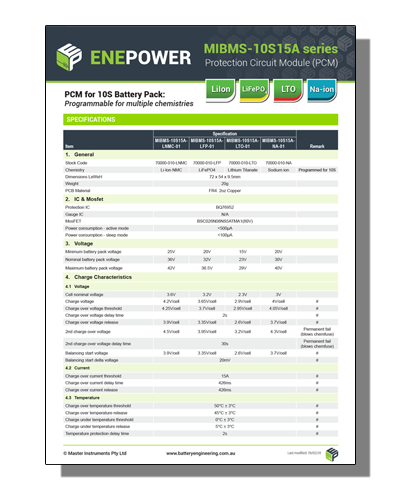

| Data Sheet |
|
