![Noark N852901-2P-MCCB 200A/500VDC](/image/67194/1/Noark-N852901-2P-MCCB 200A/500VDC.jpg)

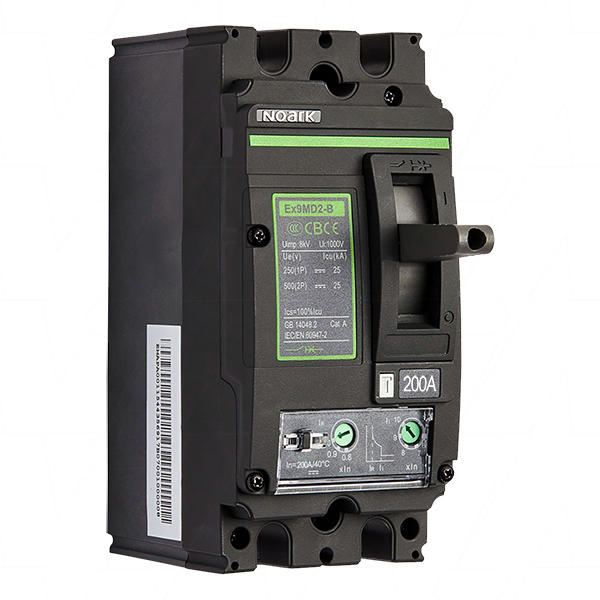

Noark N852901-2P-MCCB 200A/500VDC
N852901 MCCB EX9MD2B 200A 500V 2 Pole DC Circuit Breaker
Replacement product for discontinued N28903-2P-MCCB 200A/500VDC
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..
Specifications
Noark Series | EX9MD2B TM DC200 2P |
---|---|
Poles | 2 (250VDC per pole) |
Current Rating (A) | 200A |
Voltage (Max.) | 500VDC |
Rated Insulation Voltage (VDC) Ui | 1000VDC |
Rated Breaking Capacity | 25kA |
Release Technology | Thermo Magnetic |
Frame Size | 2 |
Frame Rating | 250A |
IP Rating (All sides/terminals) | IP40 / 20 |
Standards | IEC/EN/AS60947-2 |
Noark MCCB's are adjustable:
![Noark Adjustment Icon](/images/batteries/mccb_adj_icon.png)
If the above product is out of stock, you can use the 250A rated N852902 model with the pot switch adjusted to 0.8 to still achieve the 200A rating.
Click here to see the Noark MCCB range with all adjustment ratings, or Click here to view the Noark MCCB Product Brochure
Selling Unit | EACH |
---|---|
Model No | N852901-2P-MCCB 200A/500VDC |
Brand |
![]() |
Description | N852901 MCCB EX9MD2B 200A 500V 2 Pole DC Circuit Breaker |
Application | Solar, Automation, Control, Telecommunications, DC circuit applications |
Voltage | 500V |
Size | 200A |
Width | 70mm |
Height | 157mm |
Length / Breadth / Depth | 96.5mm |
Weight | 1200g |
Categories |
DC Circuit Breakers Moulded Case Circuit Breakers Noark Moulded Case Circuit Breakers |

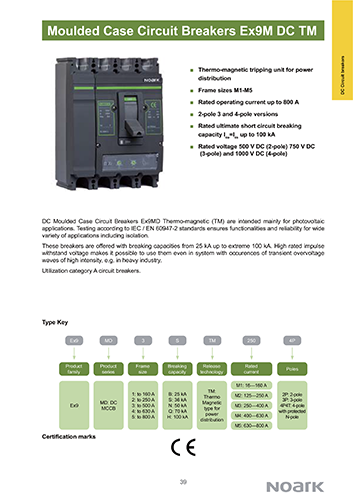

Data Sheet |
![]() |
